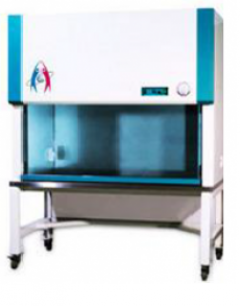

Modular construction, combining aesthetic appeal with functional utility and efficiency. These are designed to meet the filtration, illumination, Noise &Vibration requirements. Ideal for microbiological manipulations, work with bioassays sterility testing & research work, vial filling & bunging operation in parenteral units & for general dry-processing work in semiconductor industry etc. Provides a comfortable ‘sit down working position for the operators. Air Flow direction Horizontally.
All Laminar Flow Clean Air cabinets are basically constructed out of S.S. 304. Work table is made of mica top and side panels of thick transparent plexi glass.
AIR FLOW AND FILTRATION: – Laminar Flow principle involves double filtration of air. Atmospheric air is drawn through pre filter and is made to pass through highly effective HEPA (High Efficiency Particular Air) filters having efficiency rating as high as 99.99% with cold DOP and 99.97% with hot DOP, thus retaining all airborne Particles of size 0.3 micron and larger. Double filtered air blows in laminar flow through the work table at designed velocity of 9 ft. min. ± 20%.
BLOWER MOTOR ASSEMBLY: - Duly balanced, direct drive motor blower units sized to provide adequate air flow volume over the entire surface of HEPA filter. Fitted with reputed make motor and operates with minimum noise level i.e. lower than 65 db on scale and Vibration less than 2.5 um.
Lighting: – Work area properly illuminated by diffused, glare free fluorescent light.
POWER REQUIREMENT: – 230 V. 1 Phase, 50 Hz, Ac Supply.
• Satin finish S.S. Table Top (in lieu of Formica Top)
• Transparent front door
• Static Pressure. Inclined Manometer
• Built in U.V. Germicidal light
• Cock for gas, air or vacuum line
• Particle dust count validation at site after installation.
2' x 2' x 2'
3' x 2' x 2'
4’ x 2’ x 2’
6' x 2' x 2'
Product Code:ESTL- 101
